High Speed Thin Wall Injection Molding Machine Precision OUCO 420CM3 50mm

  • 1
  • 2

Brand Name : OUCO

Model Number : OUCO-350T

Certification : CE, ISO9001:2008, SGS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 500 sets/year

Delivery Time : 2 months

Packaging Details : Nude

Product Name : OUCO High-Speed Thin Wall Injection Molding Machine Precision Molding

Type : Automation

Function : Plastic Parts Production

Motor : Servo Energy Saving

Color : Support customization

Stable Performance : Short Cycle Time

Clamping Way : Hydraulic

Transport Package : FCL

Contact Now

OUCO High-Speed Thin Wall Injection Molding Machine Precision Molding

High pressure and high response servo system makes machine operation more efficient and energy-saving

Parallel bar injection structure, which can quickly reach the maximum shooting speed and improve efficiency

Designed for high-speed operation, the machine runs more smoothly and stably

Effectively meeting the requirements of high-speed thin-walled operation, resulting in more stable product output

Parameters

Injection Unit GH350
SCREW DIAMETER
 mm 50
INJECITON STROKE
 mm 225
SCREW L/D RATIO
 L/D 25
SHOT VOLUME(THEORETICAL)
 CM3 420
INJECTION WEIGHT(PP)
 g 378
INJECTION PRESSURE
 Mpa 164
DWELL PRESSYRE
 kg/cm3 1675
NJECTION SPEED
 mm/s 360
SCREW SPEED
 rpm 400
Clamping Unit
CLAMP FORCE
 Kn 2500
OPEN STROKE
 mm 490
SPACE BETWEEN TIE BARS(Ｖ×Ｈ)
 mm*mm 570*520
MAX.MOULD HEIGHT
 mm 670
MIN.MOULD HEIGHT
 mm 300
EJECTOR STROKE
 mm 150
EJECTOR STROKE
 Kn 61.5
EJECTOR NUMBER
 N 5
Others
MAX.PUMP PRESSURE
 Mpa 23
PUMP MOTOR POWER
 Kw 61.08
HEATING POWER
 Kw 15.05
MACHINE DIMENSION(L*W*H)
 M*m*m 5.74*1.45*1.78
OILTANK CUBAGE
 L 300
MACHINE WEIGHT(ESTIMATE)
 T 8.7

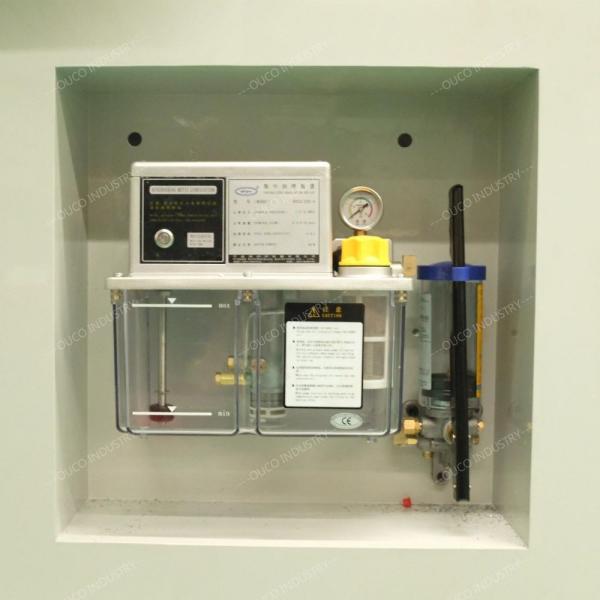

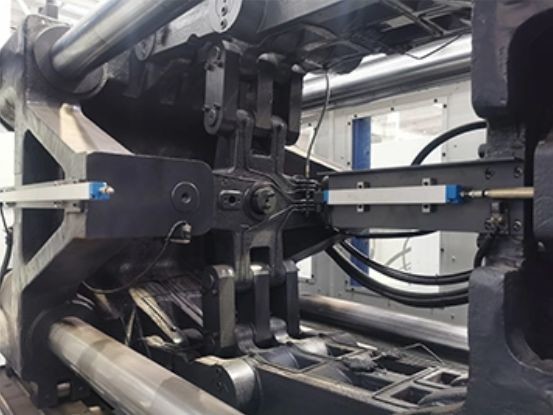

Detail Pictures

High Speed Thin Wall Injection Molding Machine Precision OUCO 420CM3 50mm

High Speed Thin Wall Injection Molding Machine Precision OUCO 420CM3 50mm

Company Profile

High Speed Thin Wall Injection Molding Machine Precision OUCO 420CM3 50mm

High Speed Thin Wall Injection Molding Machine Precision OUCO 420CM3 50mm

High Speed Thin Wall Injection Molding Machine Precision OUCO 420CM3 50mm

Kw
